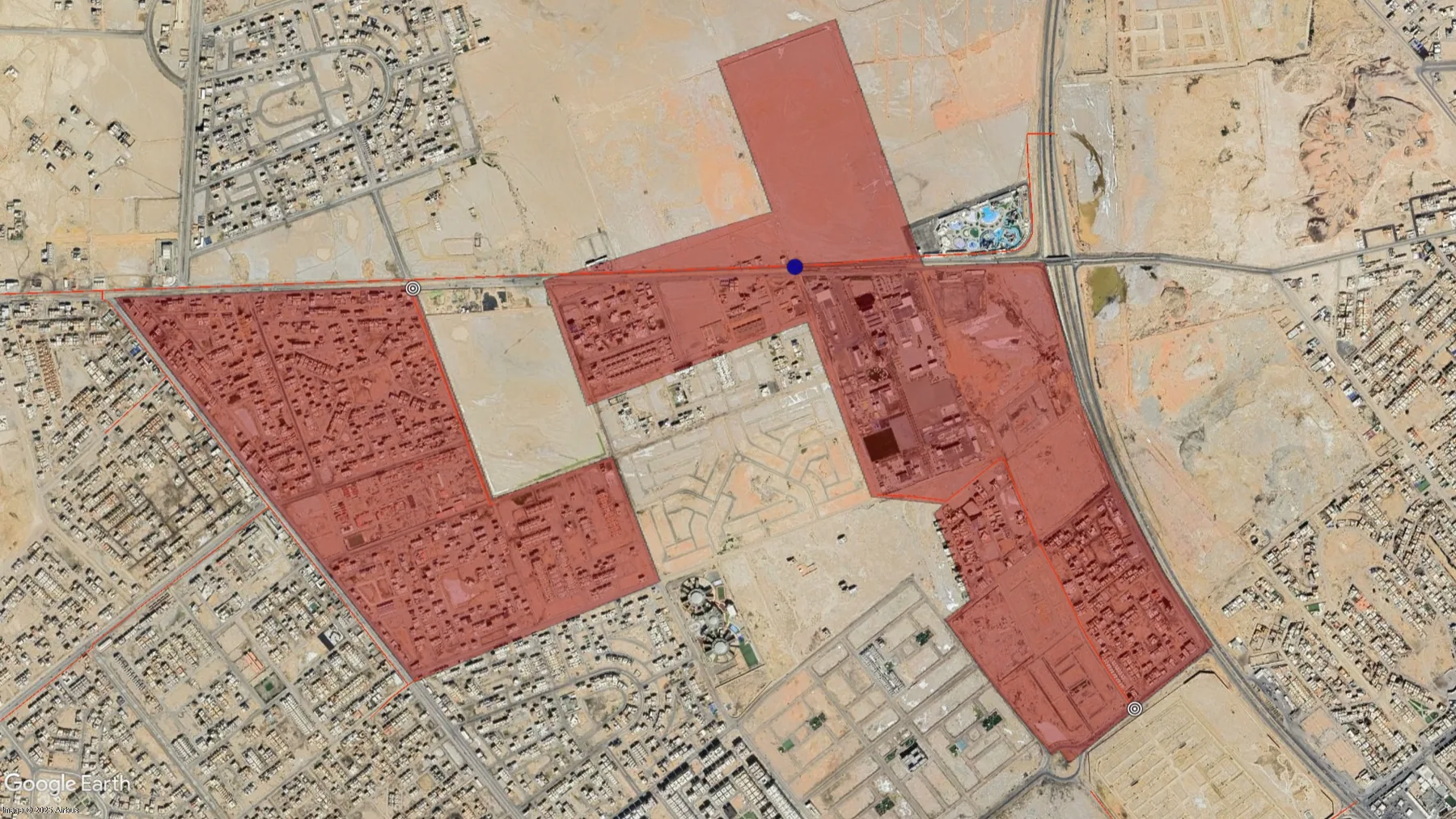

Implementing water distribution network in Al Sawary and Manarat District
Project detail
Overview
Project
overview.
DIA FROM 110 mm to 500 mm , Total lengthes = 74 km
Proposed Water Networks: The proposed water network diameters range from 110 mm to 500 mm. With a total length of 74 km.
Connection points on existing water networks: The proposed networks are connected to the existing and surrounding water networks to the area. The connection points are 2 points.
Future connection points: The proposed networks have 1 future points to feed the surrounding areas.
Total amount of Survey works: Network works are 512 hectares.
Number Of BH: 8 BHS With 91 meters of Total depth
↗
Designed length74 km⌁
Survey / network area515.86 ha⌖
LocationJeddah, Saudi Arabia#
Project numberAP860Project details
Scope and technical highlights
- DIA FROM 110 mm to 500 mm , Total lengthes = 74 km
- Proposed Water Networks: The proposed water network diameters range from 110 mm to 500 mm. With a total length of 74 km.
- Connection points on existing water networks: The proposed networks are connected to the existing and surrounding water networks to the area. The connection points are 2 points.
- Future connection points: The proposed networks have 1 future points to feed the surrounding areas.
- Total amount of Survey works: Network works are 512 hectares.
- Number Of BH: 8 BHS With 91 meters of Total depth
- Network works are 515.86 hectares.
View full technical data +
- 8 BHS
Scope of work
Water distribution networkWater Network – Design + Site Works (Survey+GEO)
Water Network – Design + Site Works (Survey+GEO)
Key quantities
74 km
Designed length
515.86 ha
Survey / network area
